IDM Servo Drives

IDMdx

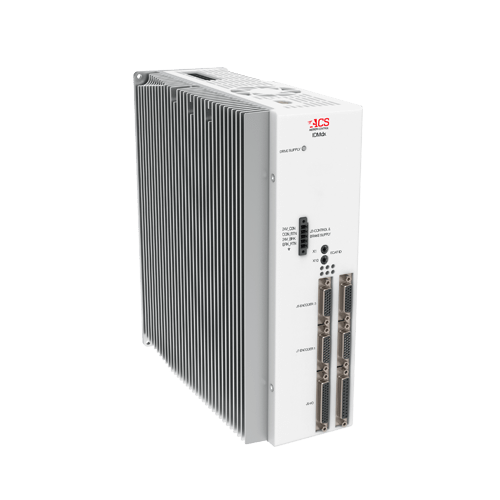

1 or 2 Axis DS402 EtherCAT® AC Input Intelligent Drive Module

The IDMdx is designed to meet the needs of OEMs employing EtherCAT-based control systems with high-precision motion stages. Controllable by any EtherCAT master, its unique multi-processor architecture leverages powerful servo control algorithms to maximize motion system performance while its universal servo drive technology provides the system designer flexibility to control most any type of motor or stage.



Ask Our Experts Download Resources




Key Specifications

  • Communication Protocol: EtherCAT DS402 (CiA402) CoE
  • Max EtherCAT Cycle Rate: 4kHz
  • Real-Time ACSPL+ Program Threads: 6
  • Drive Axes: 1 or 2
  • Drive Supply Input: 100 – 240Vac or 400Vac
  • Bus Voltage: Vin x 1.414
  • Max Current Output Per Axis: 30/60A, 1 Axis Configuration
  • Max Current Output Per Axis: 15/30A, 2 Axis Configuration
  • Mounting Type: Panel
  • Functional Safety Options: STO & SS1

Key Capabilities

  • Servo Control and Drive Technology
  • PLC and PAC Integration
  • Motion-to-Process Synchronization
  • Machine Safety and Uptime
