IDM Servo Drives

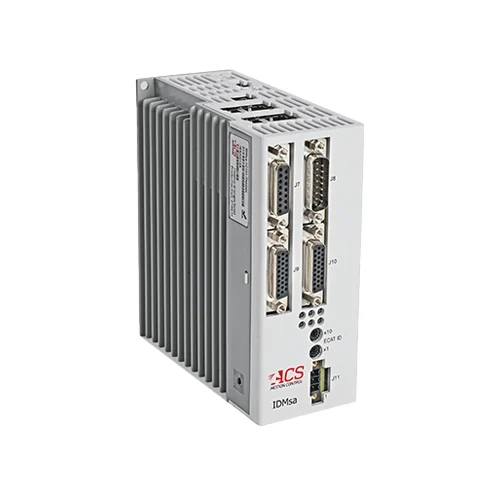

IDMsa

Single Axis DS402 EtherCAT Intelligent Drive Module

The IDMsa is designed to meet the needs of OEMs employing EtherCAT-based control systems with high-precision motion stages. Controllable by any EtherCAT master, its unique multi-processor architecture leverages powerful servo control algorithms to maximize motion system performance. At the same time, its flexible universal servo drive technology allows system designers to control almost any type of motor or stage.



Ask Our Experts Download Resources




Key Specifications

  • Communication Protocol: EtherCAT DS402 (CiA402) CoE
  • Max EtherCAT Cycle Rate: 4kHz
  • Real-Time ACSPL+ Program Threads: 4
  • Drive Axes: 1
  • Drive Supply Input: 12-150Vdc
  • Bus Voltage: Equal to drive supply input
  • Max Current Output Per Axis: 10/20A at 150Vdc, 15/30A at 100Vdc
  • Mounting Type: Panel
  • Functional Safety Options: STO & SS1

Key Capabilities

  • Servo Control and Drive Technology
  • PLC and PAC Integration
  • Motion-to-Process Synchronization
  • Machine Safety and Uptime
