ECM Motion Controllers with Integrated Servo Drives

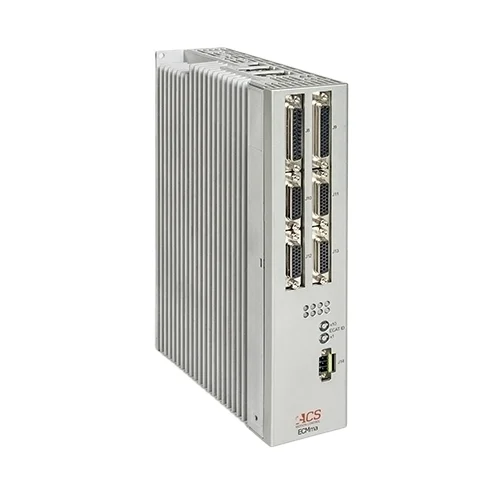

ECMma
2 or 4 Axis Motion Controller with Integrated Servo Drive up to 10/20A at 150VDC.
The ECMma is a compact, highly-integrated all-in-one motion controller and drive solution. It is designed for OEMs with cost-sensitive multi-axis applications. Its unique multi-processor architecture leverages powerful control algorithms to achieve best-in-class motion system performance. At the same time, its flexible universal servo drive technology allows system designers to control almost any type of motor or stage.
Ask Our Experts Download Resources
Key Specifications
- Controller and Drive Axes: 2 or 4
- Host PC/PLC/PAC Communication: TCP/IP, Ethernet/IP, Modbus, RS-232
- Controller Cycle Rate: 1kHz
- Drive Supply Input: 24-150Vdc
- Bus Voltage: Equal to drive supply input
- Max Current Output Per Axis: 15/30A up to 100Vdc, 10/20A up to 150Vdc
- Encoder Channels: 4 (AqB, Absolute, or SinCos)
- Mounting Type: Panel
- Functional Safety Options: STO & SS1
Key Capabilities
- Controller Application Development
- Host Application Development
- Motion Profile Generation
- Servo Control and Drive Technology
- Motion-to-Process Synchronization
- PLC and PAC Integration
- Machine Safety and Uptime
