SPiiPlusSC-HP

PC-Based Soft EtherCAT Master Motion Controller

The SPiiPlusSC-HP is designed for OEMs with demanding multi-axis motion control applications. Running in the host PC without additional hardware, SPiiPlusSC-HP provides high-speed shared RAM communication for data-intensive applications like high-speed vision SMT pick-place assembly equipment.

It leverages powerful application development capabilities and profile generation algorithms to reduce time to market and maximize motion system performance.

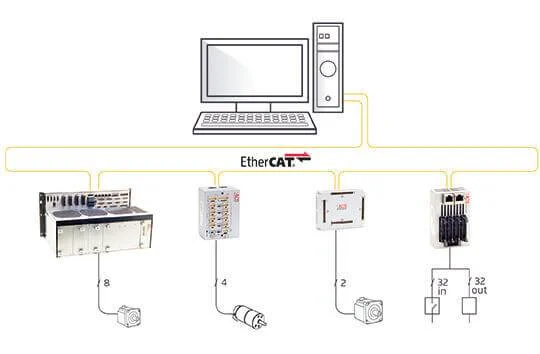

It can control ACS products in the SPiiPlus Motion Control Platform and 3rd party EtherCAT devices, providing flexibility for the motion control system designer.



Ask Our Experts Download Resources




Key Specifications

  • Controller Axes: 2, 4, 8, 16, 32, 64 or 128
  • Host PC Applications Communication: TCP/IP, Shared RAM
  • Max EtherCAT Cycle Rate: 5kHz
  • Mounting: Embedded in PC (Run-time license on USB dongle required)
  • Optional Proprietary ACS Features: NetworkBoost, MotionBoost, Flexible Configuration
  • Support for Windows and Linux OS

Note: The SPiiPlusSC-HP installation package is not hosted on the ACS website.
Customers: please contact the ACS Support team for access to this file.



Key Capabilities

  • Controller Application Development
  • Host Application Development
  • Motion Profile Generation
  • Motion-to-Process Synchronization
  • Machine Safety and Uptime
