Drive Interfaces

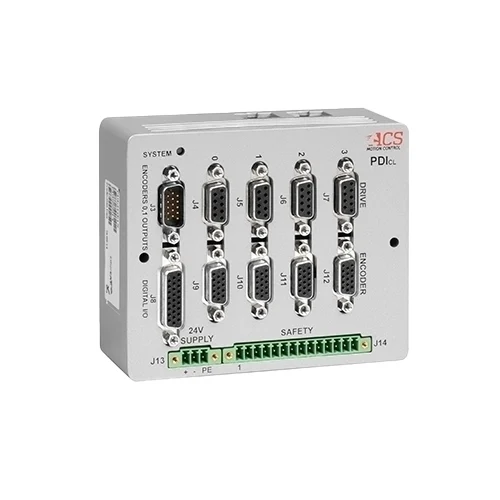

PDIcl

Up to 4 Axis Pulse/Direction Drive Interface

The PDIcl is designed to meet the needs of OEMs with demanding multi-axis motion control applications. Controllable by any ACS SPiiPlus Platform EtherCAT master, it enables closed-loop control of 3rd party stepper and servo drives via pulse/direction commands.



Ask Our Experts Download Resources




Key Specifications

  • Drive Command Axes: 2 or 4
  • Command Type: Pulse/Direction (position)
  • Encoder Channels: Max 4 any combination (AqB – 4, Absolute – 2)
  • Mounting: Panel, DIN rail

Key Capabilities

  • Motion-to-Process Synchronization
