NPA Analog Interface Servo Drives

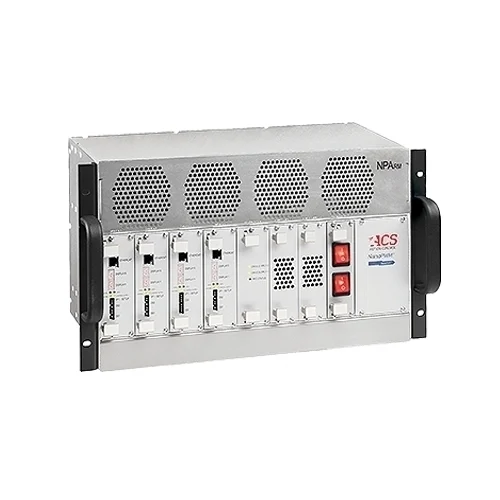

NPArm

Up to 8 Axis Analog Command NanoPWM Drive Module

The NPArm is a modular, configurable drive solution. It is designed for OEMs with nanometer-level multi-axis motion control applications using 3rd party motion controllers providing commutated analog current commands. It leverages powerful servo control algorithms and NanoPWM technology to maximize motion system performance, offering a better-performing and more reliable alternative to linear drives.



Ask Our Experts Download Resources




Key Specifications

  • Command Type: +/-10V Commutated Current
  • Drive Axes: Up to 8
  • Drive Supply Input: 100-240Vac
  • Bus Voltage: 48 or 96Vdc
  • Max Current Output Per Axis: 13.3/40A
  • Mounting: Rack
  • Functional Safety Options: STO
  • Proprietary ACS Feature Options: NanoPWM

Key Capabilities

  • Servo Control and Drive Technology
  • Machine Safety and Uptime
